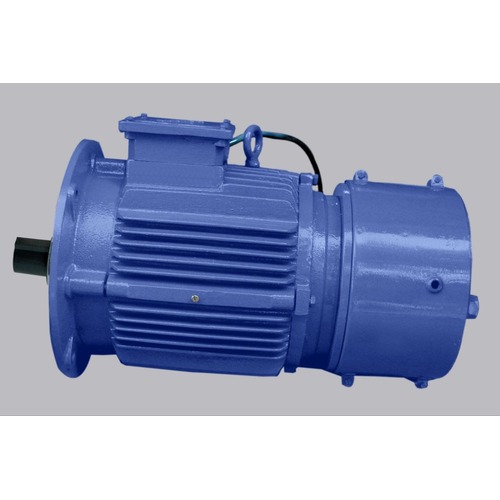

AC Brake Motors
Our industrial-grade AC brake motors combine reliable motor performance with an integrated electromagnetic brake system. Ideal for applications requiring quick stopping, load holding, or vertical movement safety. These motors offer precise control and immediate braking action with response times under 0.1 seconds.
| Specification | Details |
|---|---|
| Power Range | 1.5 kW to 20 kW (2HP to 20HP) |
| Voltage | 220V/380V/415V, 50Hz (Custom voltages available) |
| Motor Type | 3-Phase or Single Phase with integrated brake |

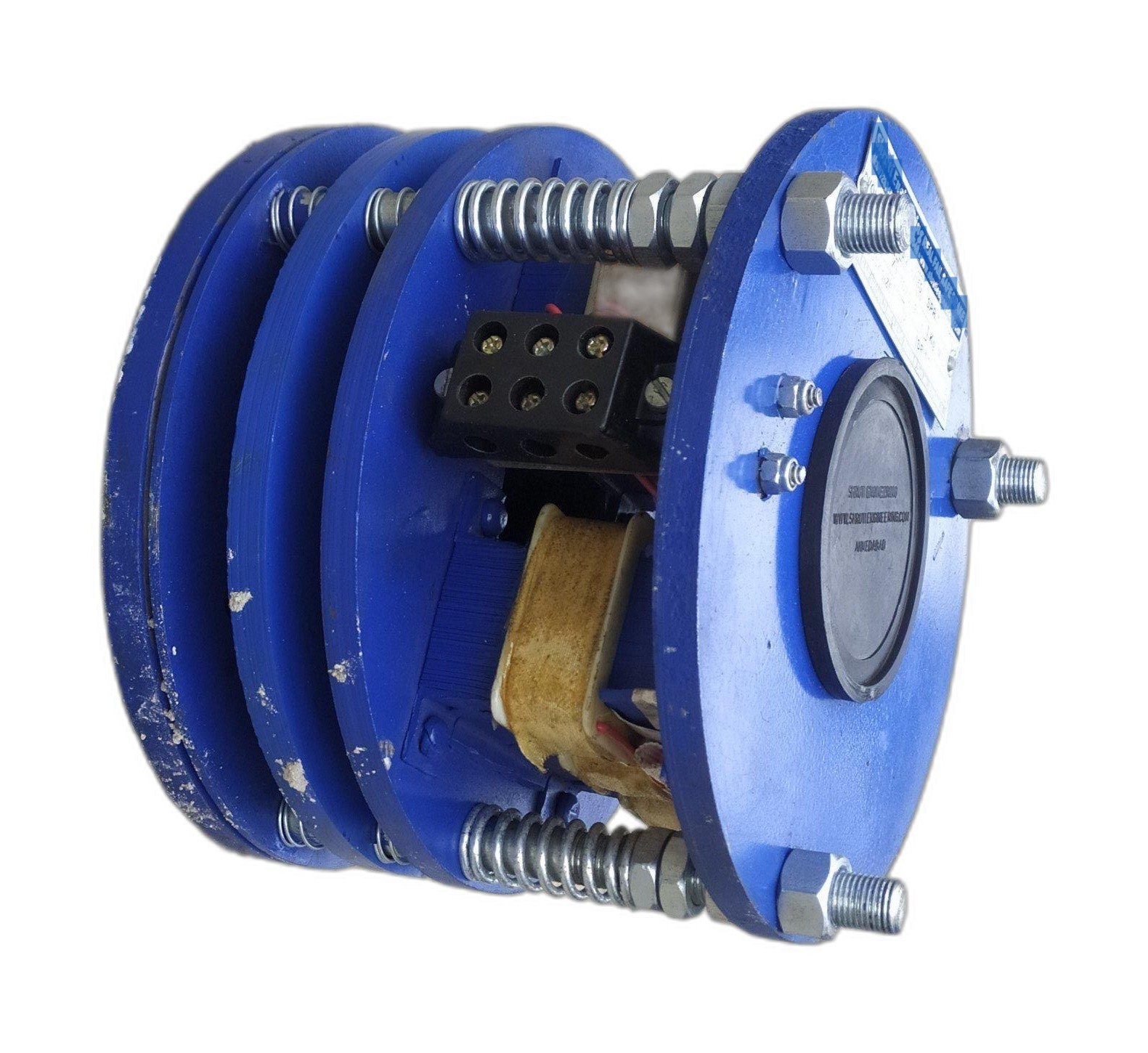

| Brake Type | Spring-applied, electrically released DC brake |
| Brake Torque | 2 Nm to 200 Nm (depending on model) |
| Brake Voltage | 24V DC or 42V DC standard |
| Response Time | < 0.1 sec (brake release), < 0.02 sec (brake application) |
| Enclosure | IP55 (Totally Enclosed Fan Cooled) |
| Frame Sizes | 80 to 160 |
| Insulation Class | F (155°C) |
| Mounting | Foot Mounting (B3), Flange Mounting (B5/B14) options |
| Duty Cycle | S1 (Continuous duty) or S3 (Intermittent duty) |
